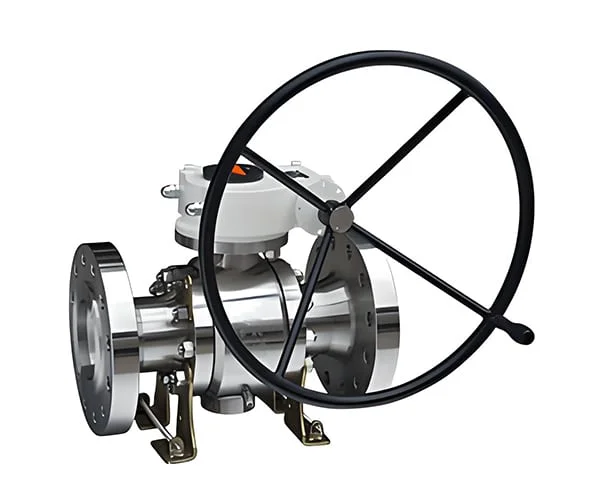

High pressure ball valve

Product Description:

The High Pressure Stainless Steel Ball Valve is specifically designed to handle high-pressure applications where reliable performance and durability are critical. These valves are crafted from premium stainless steel (316, 304, 316L) to ensure exceptional corrosion resistance, strength, and longevity under extreme conditions. The design typically uses a trunnion-mounted ball configuration, ensuring that the ball remains securely fixed under high pressure, preventing movement and guaranteeing a tight seal. This valve serves as an on/off switch for fluid flow, providing a quick and reliable shut-off in high-pressure systems. It is not intended for flow regulation, but rather to fully open or close the flow path as required.

Typically used in applications within the oil and gas, chemical, power generation, and water treatment industries, the high-pressure stainless steel ball valve provides a secure and leak-tight seal for even the most demanding systems.

Product Features:

High Pressure Handling:These ball valves are engineered to withstand high-pressure conditions, commonly available in pressure ratings up to 4500 psi (or higher, depending on the design). They are designed specifically for severe service environments where pressure control is crucial.

Trunnion-Mounted Ball Design:Unlike floating ball valves, which are more suitable for lower-pressure applications, the trunnion-mounted ball design is the standard for high-pressure applications. The ball is securely fixed, preventing it from shifting under pressure, ensuring that the valve can handle extreme pressure without deformation.

On/Off Functionality:The high-pressure stainless steel ball valve is primarily designed for on/off applications, acting as a switch for fluid flow rather than a flow control valve. It is ideal for isolation or shut-off duties in critical systems, but not suitable for precise flow regulation.

Material Integrity:Made from high-grade stainless steel (316, 304, 316L), these valves provide excellent resistance to corrosion, abrasion, and high temperatures, ensuring long service life and minimal wear in harsh environments.

Leak-tight Sealing:The trunnion-mounted design ensures that the valve seals effectively under high-pressure conditions, providing zero leakage when in the fully open or fully closed position. This makes them suitable for systems where leakage would lead to safety hazards or system failure.

Flanged or Welded Connections:These valves are typically equipped with flanged (ANSI, DIN) or welded connections, ensuring robust integration into high-pressure piping systems. Threaded connections are not used for high-pressure ball valves, as they are unsuitable for withstanding the stresses involved.

Advantages

Superior Pressure Handling: The trunnion-mounted ball design ensures that the valve can handle extremely high pressures without compromising its integrity. This design is perfect for high-pressure gas transmission, steam systems, and oil pipeline applications.

Long Service Life: Made from corrosion-resistant stainless steel, these valves provide a long service life in even the harshest environments. They require less frequent maintenance compared to valves made from less durable materials, offering cost savings over time.

Reliable Shut-Off: These valves provide reliable and tight shut-off even under high-pressure conditions. This is essential in preventing accidental fluid or gas leakage that could lead to hazardous situations.

Reduced Risk of Failure: The use of a trunnion-mounted ball rather than a floating ball significantly reduces the risk of ball deformation or seat damage under high-pressure, enhancing the valve’s reliability.

Enhanced Corrosion Resistance: Stainless steel construction ensures high resistance to corrosion from aggressive media such as sea water, chemicals, acids, and alkalis, extending the valve’s lifespan even in corrosive environments.
