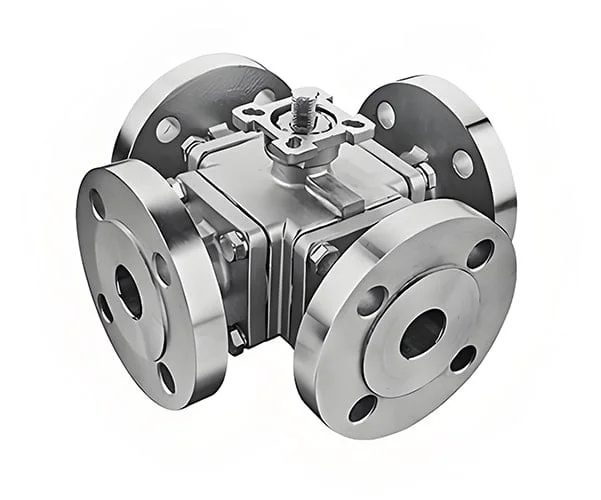

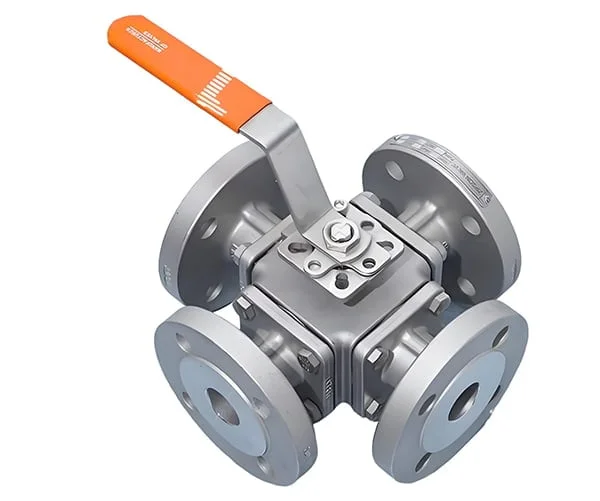

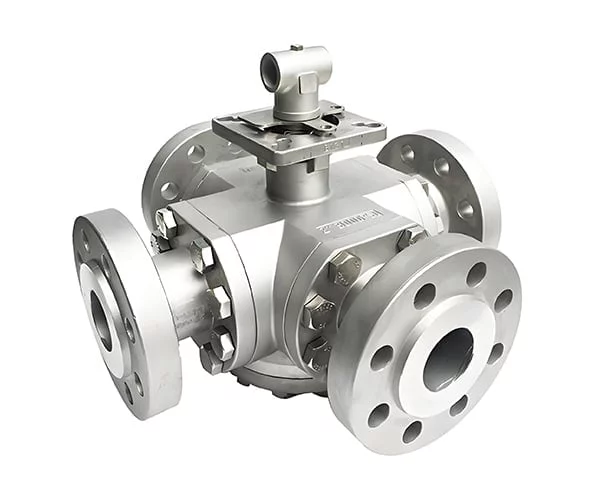

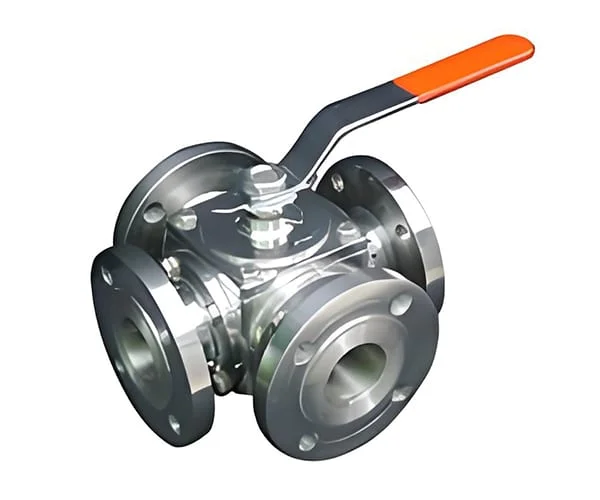

Four-way ball valve, High pressure ball valve

Product Description:

The High Pressure 4-Way Ball Valve is a robust and reliable valve designed for high-pressure applications. Manufactured from forged steel, this valve is engineered to perform under extreme conditions, offering superior strength and durability in high-stress environments. With its 4-way ball design, this valve is used primarily for flow direction control rather than flow regulation, making it ideal for industrial systems that require precise switching of flow paths between multiple outlets or inlets.

Unlike standard ball valves, which are typically employed for regulating flow rates, the 4-way ball valve is specifically intended to redirect flow, ensuring efficient fluid management in complex piping systems. It is a critical component in applications where high pressure, safety, and reliability are key. The valve is typically installed with flanged connections to maintain leak-free sealing under high pressure, making it a preferred choice for industries such as oil and gas, chemical processing, power generation, and petrochemical.

Product Features:

Forged Steel Construction: The valve body and internal components are made from forged steel (such as A105 or A350 LF2), offering superior mechanical properties like high tensile strength, fatigue resistance, and resistance to pressure-induced stress. This construction is ideal for high-pressure environments, ensuring long-lasting performance.

4-Way Ball Design: The valve’s unique 4-way ball configuration allows for the redirection of flow between multiple inlets and outlets. This design is ideal for flow diversion, enabling efficient flow switching without altering the pressure or volume of the flow.

Flanged Connections: The flanged connection design allows for easy installation and secure sealing under high pressure, typically conforming to industry standards like ANSI 150#, 300#, or 600#. The flanged design minimizes the risk of leakage and ensures a tight, durable seal.

High Pressure Rating: Engineered to handle extreme pressure conditions, this valve can manage operating pressures up to 2500 psi or higher, making it ideal for applications where high-pressure fluid or gas management is required.

Precise Flow Switching: While not intended for flow regulation, the 4-way valve excels in redirecting flow efficiently between different pathways, making it perfect for systems where precise switching is critical, such as in piping networks or chemical reactors.

Leak-Free Sealing: Equipped with high-quality sealing materials such as PTFE, PFA, or metal seals, the valve ensures reliable, leak-free operation, even under high-pressure and aggressive media conditions.

Durable and Long-Lasting: The forged steel construction provides exceptional strength and resistance to wear and fatigue, offering long service life and minimizing the need for frequent maintenance.

Advantages：

High Pressure Capability: Built to handle extreme pressures, the forged steel construction of this valve ensures it can withstand high-pressure environments without compromising on performance or reliability.

Flow Redirection Efficiency: The 4-way ball design offers efficient flow switching without altering pressure, making it ideal for complex systems requiring multi-path flow control.

Durable Construction: With forged steel components, this valve offers superior corrosion resistance, impact resistance, and fatigue resistance, ensuring reliable operation in harsh industrial environments.

Flanged Connection for Easy Installation: The flanged connections provide a robust and easy-to-install solution, which ensures secure sealing and reduces the risk of leaks in high-pressure applications.

Leak-Free Operation: Advanced sealing materials like PTFE or metal seals guarantee reliable, leak-tight operation even under challenging conditions.

Compact and Robust: Despite handling high-pressure systems, the valve is designed to be compact, requiring minimal space and making it a versatile choice for different types of piping layouts.
