Product Overview

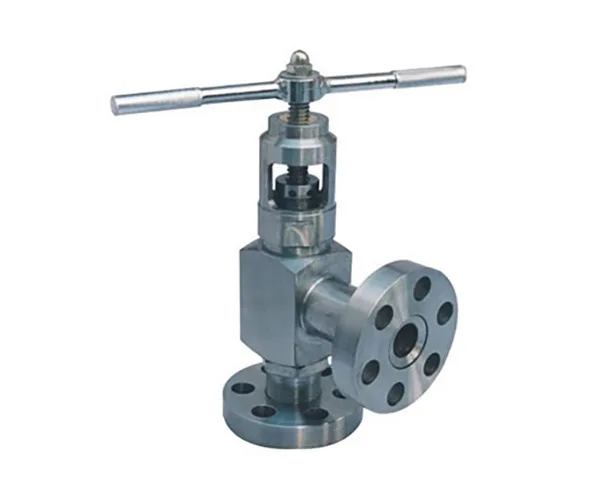

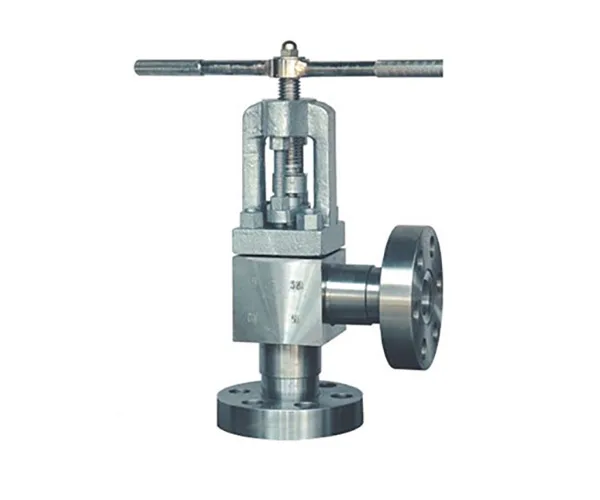

This forged steel angle globe valve is a high-performance right-angle control valve designed for small-bore high-pressure and high-temperature pipelines. It features an integrated forged body and 90° angle flow path, providing reliable shut-off and precise flow regulation for demanding industrial systems.
Suitable for steam, oil, gas and other high-pressure media, this valve is widely used in power plants, petrochemical, oil & gas, thermal systems and other high-demand applications. It complies with international industrial standards and is suitable for global markets.
Key Features
-
Integral Forged Steel Construction
Valve body is fully forged for high density, high strength and excellent resistance to pressure, temperature and fatigue, free of casting defects.
-
90° Angle Structure
Right-angle design allows direct installation at pipeline corners, saves space, reduces flow resistance and eliminates the need for extra elbows.
-
Precision Sealing & Zero Leakage
Disc and seat are precision lapped for tight shut-off. High-grade sealing and packing ensure long-term durability under high pressure and high temperature.
-
High Pressure Ratings
Available in pressure ratings from Class 150 up to Class 2500, ideal for high-pressure and ultra-high-pressure working conditions.
-
Compact Small Bore Design
Professional design for small sizes from DN15 to DN50, with stable performance and easy operation.
-
International Standard Compatibility
Meets common global standards, suitable for customers in Europe, Russia, America and worldwide.
Main Technical Parameters
- Nominal Diameter: DN15–DN50
- Connection Type: Flanged / Socket Weld
- Pressure Rating: Class 150 – Class 2500
- Body Material: Forged A105, F304, F316
- Working Temperature: -29℃ ~ 550℃
- Suitable Media: Steam, thermal oil, water, oil, gas, high-temperature fluids
- Operation: Handwheel operated
Applications
- Power plant and boiler high-pressure & high-temperature systems
- Petrochemical and refinery process pipelines
- Oil and gas field high-pressure small-bore lines
- Thermal oil and heating systems
- Industrial high-pressure corner pipelines
Nominal Diameter: DN15–DN50
Connection Type: Flanged / Socket Weld
Pressure Rating: Class 150 – Class 2500
Body Material: Forged A105, F304, F316
Working Temperature: -29℃ ~ 550℃
Suitable Media: Steam, thermal oil, water, oil, gas, high-temperature fluids
Operation: Handwheel operated
