Product Description

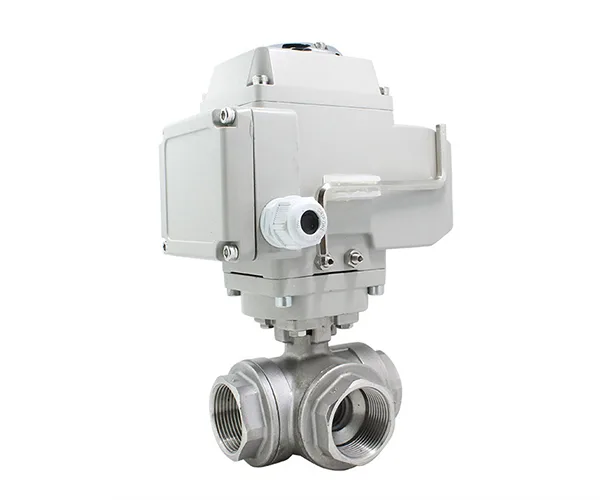

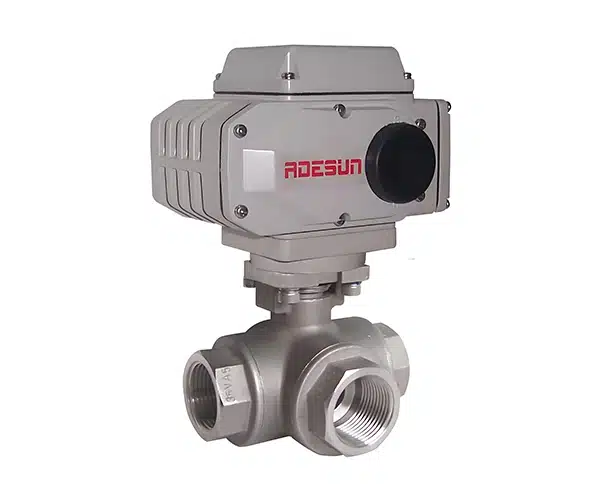

The 3-way motorized threaded ball valve is a high-performance flow control device designed for efficient and automated fluid direction and shut-off. Featuring a compact structure with threaded connections, this valve provides versatility in installations where space is limited. The electric actuator allows seamless automation, enabling precise and reliable control over fluid direction and flow paths. The 3-way configuration offers two common flow patterns: L-port for diverting or mixing flow and T-port for distributing or combining flow.
Product Features
3-Way Configuration:L-Port Design: For diverting or mixing fluid between two outlets.T-Port Design: For combining, distributing, or looping fluid across three ports.
Motorized Actuation:Equipped with an electric actuator for automated control.Actuator options include standard, regulating, explosion-proof, and intelligent types.
Supports remote and centralized control for increased system efficiency.
Threaded Connections:Compliant with standards such as NPT, BSPP, or BSPT, offering easy integration into threaded piping systems.Leak-proof connections suitable for low to medium pressure systems.
Durable Construction:Valve body options include 304/316 stainless steel for enhanced corrosion resistance or brass for cost-effective solutions.PTFE or RPTFE seats ensure excellent sealing performance, chemical resistance, and durability.
Compact Design:Lightweight and space-saving, ideal for installations in confined areas.
Versatile Applications:Capable of handling various fluids, including water, oils, gases, and light chemicals.
User-Friendly:Quick installation and low maintenance.Automated operation reduces manual intervention and ensures consistent performance.
Working conditions
cement factory, chemical plant, food factory, General, paper mill, pharmaceutical factory
Summarize
The 3-way motorized threaded ball valve is a versatile and durable solution for automated fluid control in industrial and commercial systems. Its compact design, reliable sealing, and advanced motorized operation make it a practical choice for applications ranging from HVAC to water treatment and chemical processes. With stainless steel or brass construction, PTFE sealing, and a choice of L-port or T-port configurations, this valve offers exceptional flexibility and performance in a variety of environments.
| Nominal diameter |
DN15-DN50(1/2”-2”) |
| Valve Type |
3-Way Motorized Threaded Ball Valve |
| Body Material |
Stainless Steel (304/316) |
| Seat Material |
PTFE, RPTFE |
| Actuator Type |
Electric (Standard, Explosion-Proof, Smart) |
| Temperature Range |
-20°C to 200°C (-4°F to 392°F) |
| Thread Standards |
NPT, BSPP, BSPT |
| Flow Patterns |
L-Port, T-Port |
| Function |
Change direction |
