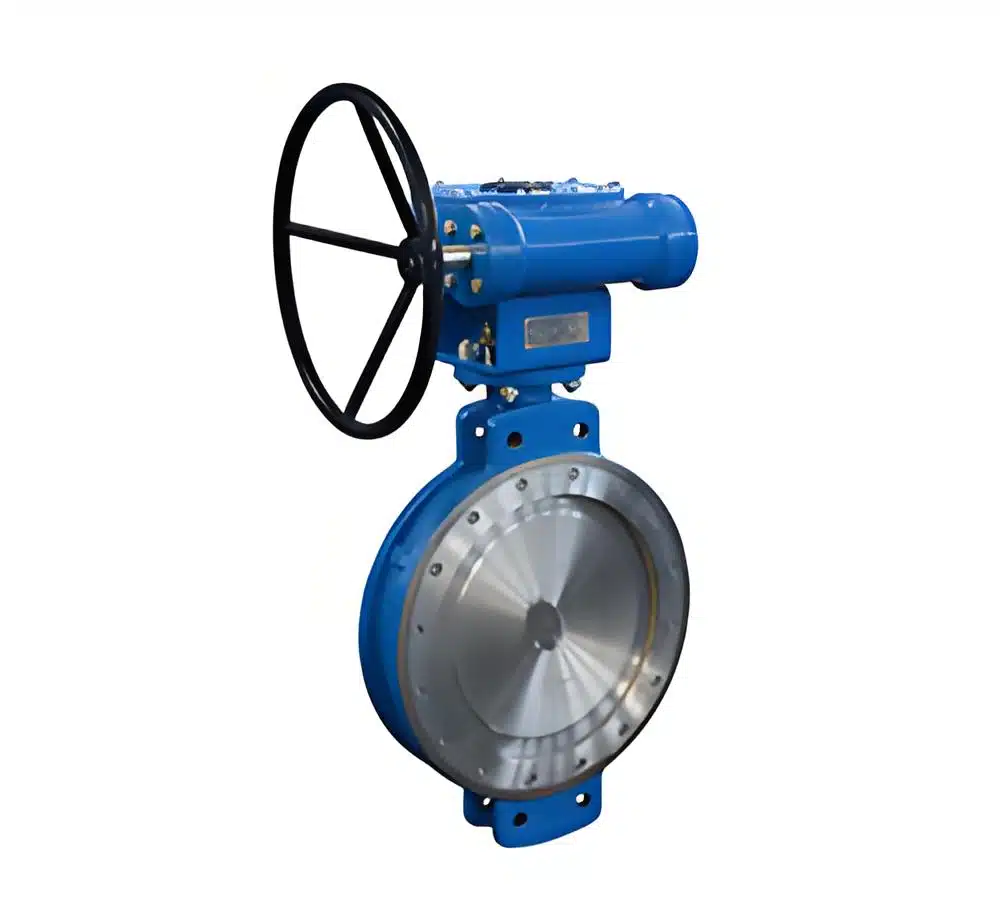

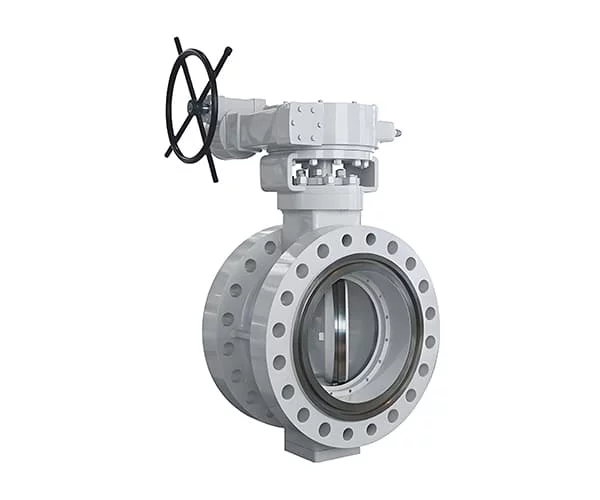

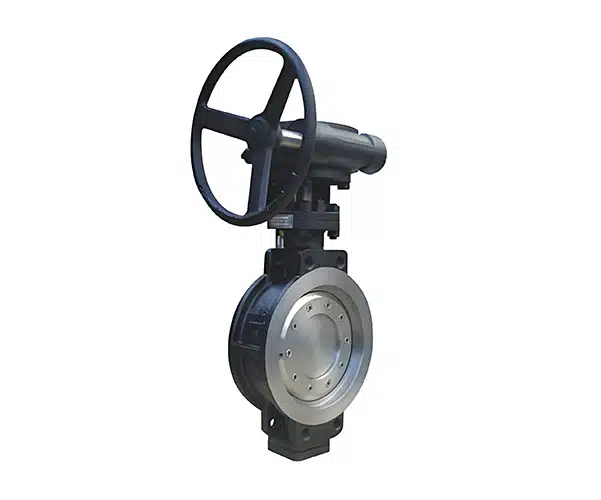

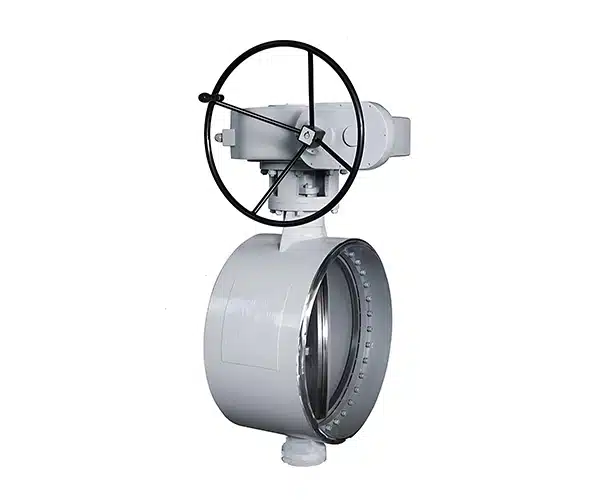

Hard seal butterfly valve

Product Description

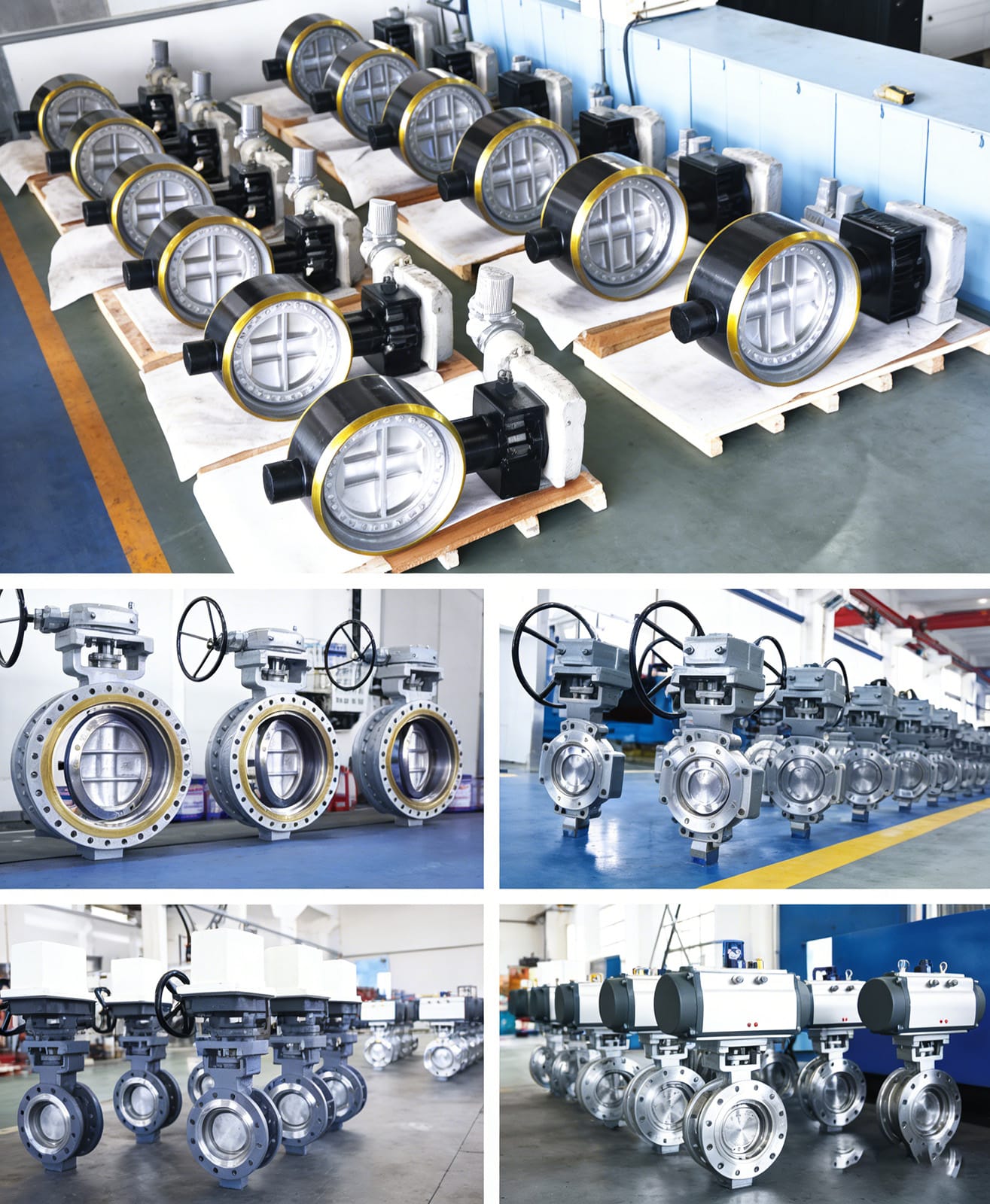

The Triple Eccentric Metal Seat Butterfly Valve is a high-performance valve designed for demanding industrial applications where reliable sealing, high temperature, and high-pressure resistance are required. Its unique triple eccentric structure ensures zero leakage and minimal wear, making it ideal for critical systems in industries such as petrochemical, power generation, metallurgy, and municipal utilities.

Triple Eccentric Structure and Working Principle

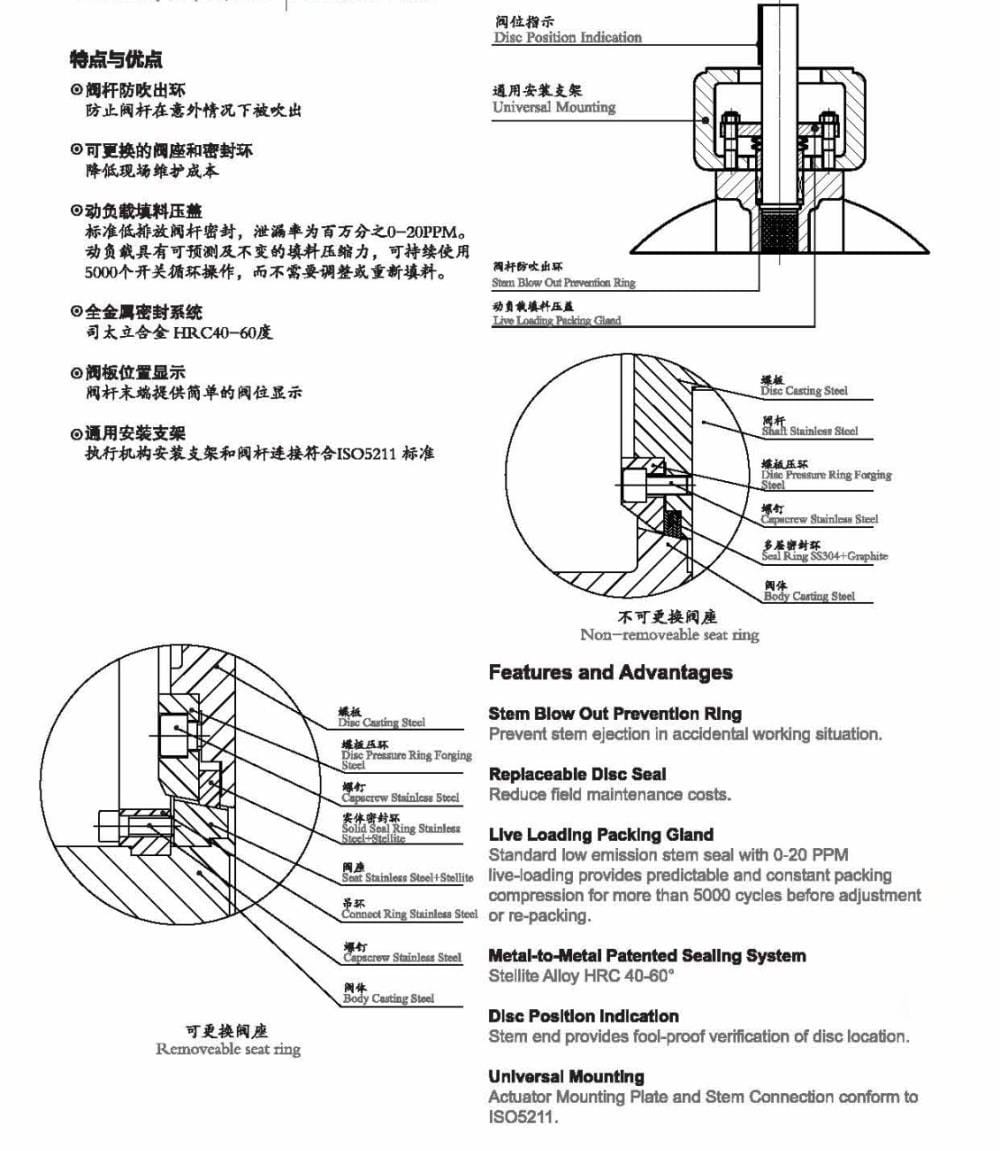

The triple eccentric structure refers to the placement of three key offsets in the valve’s design

1.First Eccentricity:The valve stem is positioned slightly behind the centerline of the valve body. This reduces the direct friction between the disc and the seat during operation.

2.Second Eccentricity:The valve stem is offset from the centerline of the pipeline. This offset allows the disc to rotate independently, further reducing wear and friction on the sealing surfaces.

3.Third Eccentricity:The sealing surface of the disc is machined into a conical shape, creating an angle that eliminates contact between the sealing surfaces when the valve is open. The contact occurs only during the final stages of closure, ensuring a tight and reliable seal.

Working Principle:
When the valve is actuated, the triple eccentric design ensures the disc moves smoothly without scraping or dragging against the seat. The conical metal seat and disc interface only engage during closure, creating a uniform and reliable seal under high pressure and temperature conditions. This design minimizes wear, extends the valve’s lifespan, and maintains sealing integrity over prolonged use.

Product Features

Triple Eccentric Structure：Guarantees zero friction and minimal wear between the disc and seat, extending valve service life.

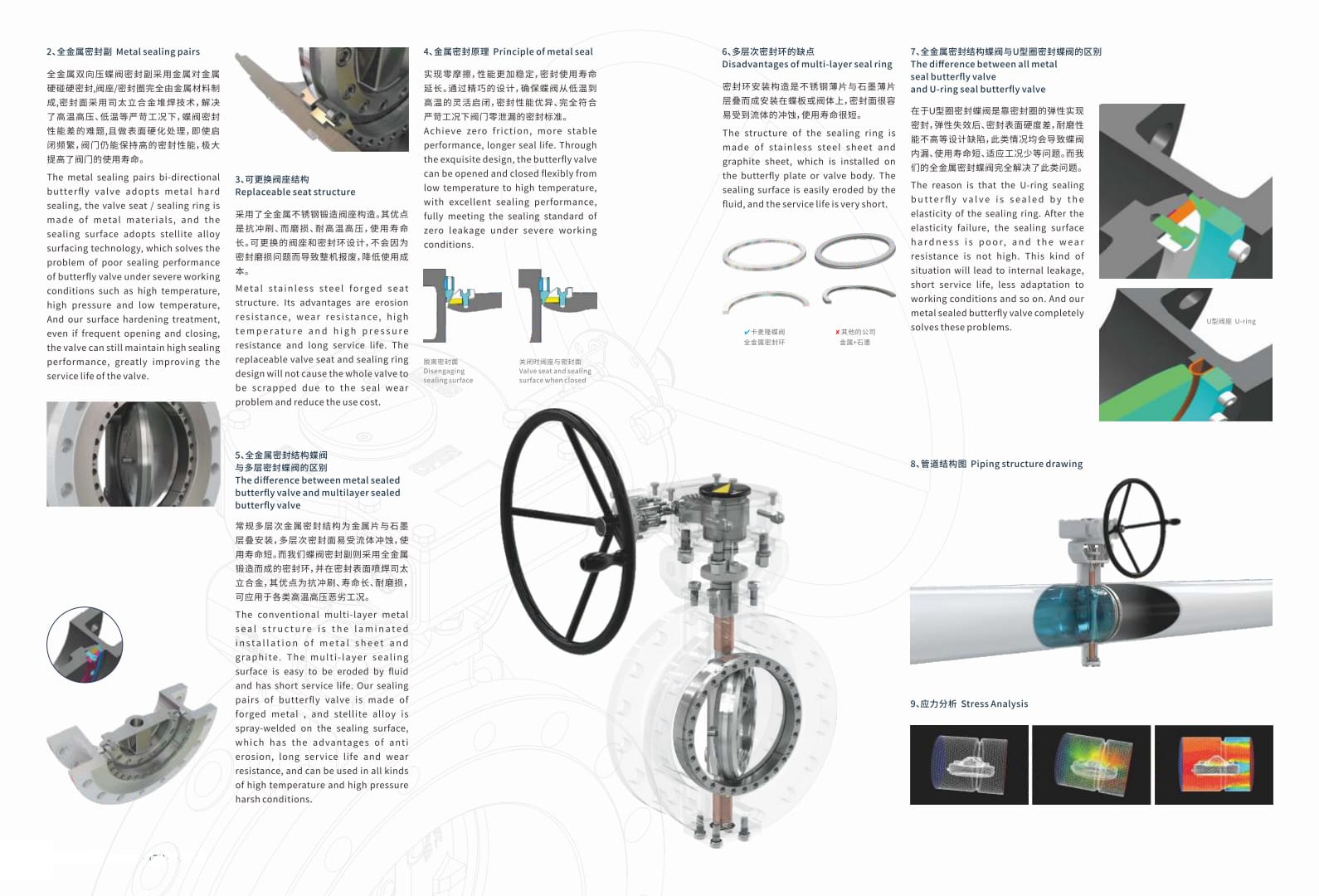

Metal-to-Metal Sealing：Provides superior resistance to high temperatures, high pressures, and abrasive media.

Bi-Directional Sealing：Ensures reliable sealing in both flow directions, enhancing versatility in installation.

High Performance in Extreme Conditions：Ideal for high-pressure, high-temperature environments, maintaining sealing integrity and operational reliability.

Corrosion and Abrasion Resistance：Premium materials ensure durability against corrosive and abrasive media.

Low Torque Operation：The unique design minimizes operational torque, reducing actuator size and energy consumption.

Working conditions

cement factory, chemical plant, High temperature and high pressure, High temperature and high pressure, High temperature and high pressure steam system, metallurgical plant, mining industry, Petrochemical industry, power plant

Summarize

The Triple Eccentric Metal Seat Butterfly Valve stands out as a reliable and durable solution for industrial applications requiring robust performance and long-lasting sealing capabilities. With its advanced design, premium materials, and ability to handle extreme operating conditions, this valve ensures operational efficiency, reduced maintenance, and exceptional value in demanding environments.
