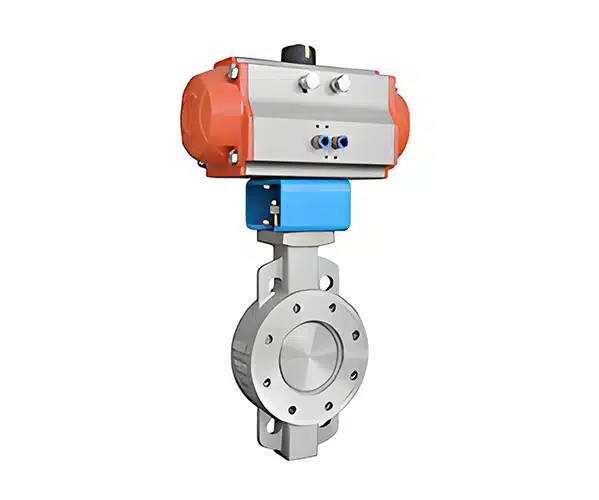

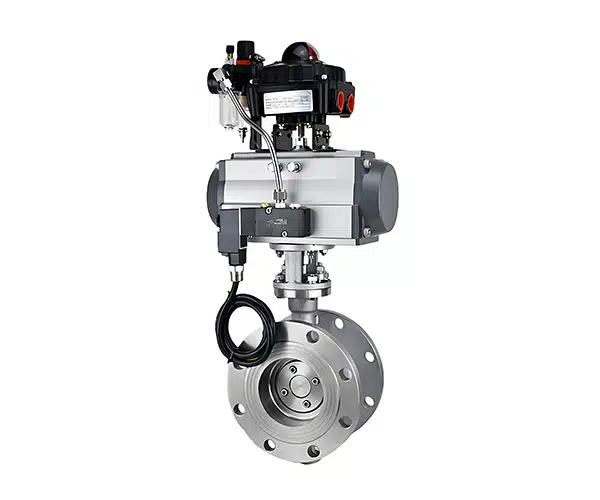

Product Overview:
The Stainless Steel Pneumatic Butterfly Valve is a highly versatile and efficient flow control device, designed to provide optimal performance in corrosive environments. Constructed from stainless steel, this valve ensures superior corrosion resistance, making it suitable for handling aggressive media such as acids, alkalis, seawater, and other harsh chemicals.
Equipped with a pneumatic actuator, the valve offers rapid and reliable automated operation, supporting both on/off and modulating control. Its compact and lightweight design ensures easy installation and integration into industrial systems, particularly where space is limited.
Key Features:
High-Quality Stainless Steel Construction:Body and disc materials are available in 304, 316, or 316L stainless steel, ensuring resistance to corrosion and wear.
Suitable for use in industries such as chemical processing, food and beverage, and marine applications.
Pneumatic Actuation:Features spring-return and double-acting actuators for precise control.
Supports centralized control systems, enabling remote or automated operations.
Wide Range of Sealing Options:Soft seals (e.g., PTFE, EPDM, NBR) for general applications requiring tight shutoff.
Metal seals for high-temperature or abrasive conditions.
Compact and Lightweight Design:Minimal space requirements make it ideal for systems with size constraints.
Wafer or lug-style body connections for easy installation between flanges.
Standards Compliance:Manufactured to meet international standards such as API 609, ISO 5211, and CE, ensuring reliability and safety.
Advantages
Exceptional Corrosion Resistance:Stainless steel construction ensures durability in aggressive environments, extending service life.
Automated Efficiency:Pneumatic actuation provides fast, reliable operation with minimal maintenance, enhancing process efficiency.
Versatility in Applications:Compatible with a wide range of media, including corrosive liquids, gases, and slurries.Adaptable to different pressure and temperature requirements.
Energy Efficiency:Pneumatic actuators consume less energy compared to electric actuators, reducing operational costs.
Low Maintenance Requirements:Self-cleaning sealing surfaces and robust materials reduce the need for frequent repairs.
Working conditions
chemical plant, corrosive media, food factory, pharmaceutical factory
Summarize
The Stainless Steel Pneumatic Butterfly Valve offers unparalleled corrosion resistance and reliability, making it the optimal choice for industries requiring robust flow control in challenging environments. Its compact design, automated operation, and compatibility with a wide range of media ensure efficient and long-lasting performance.Whether used in chemical processing, water treatment, or pharmaceutical systems, this valve delivers excellent durability and operational efficiency, meeting the demands of modern industrial applications.
| Nominal Diameter |
2-48 inch；DN50-DN1200 |
| Nominal Pressure |
PN10-PN40；（150LB-300LB） |
| Body Material |
Stainless Steel (304, 316, 316L) |
| Disc Material |
Stainless Steel, Duplex Stainless Steel |
| Seat Material |
PTFE, Metal Seal |
| Temperature Range |
-40°C to 300°C (dependent on seal material) |
| Connection Type |
Wafer, Lug, Flange |
| Actuator Type |
Pneumatic (Spring Return, Double Acting) |
| Control Modes |
On/Off, Modulating |
| Air source pressure |
0.4MPa-0.8MPa |
