Product Description

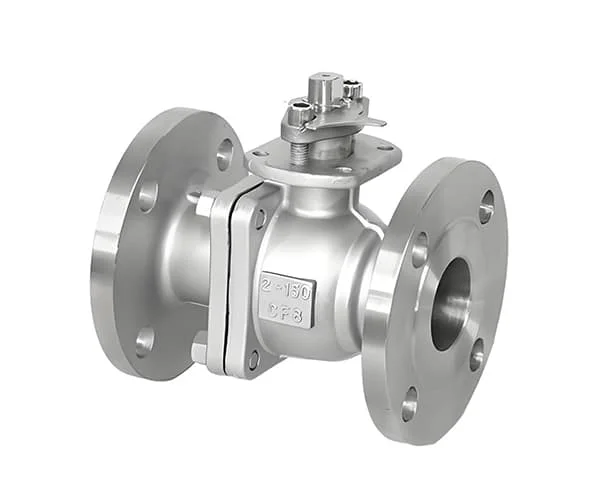

The stainless steel floating ball valve is a high-performance valve designed for on/off control in a wide variety of industries. This valve uses a floating ball design, where the ball is not fixed, but “floats” and is held in place by the seat pressure, providing a reliable sealing mechanism.
Made from corrosion-resistant stainless steel, it ensures long-lasting performance in harsh environments, offering superior resistance to corrosion, high pressures, and temperatures. The stainless steel floating ball valve is commonly used in applications involving water, steam, gas, chemicals, and oils.
Product Features

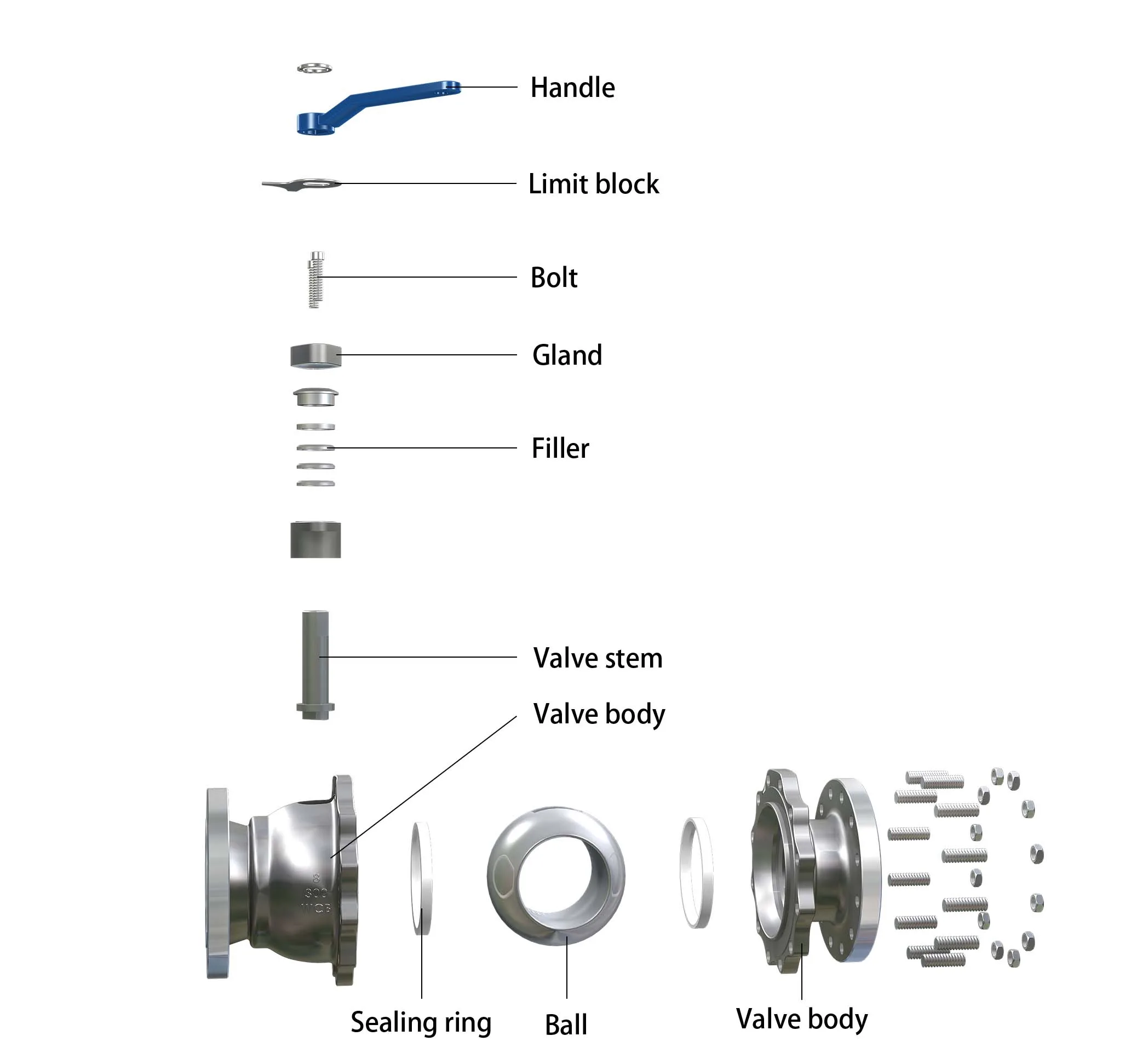

Floating Ball Design:The ball is not fixed and “floats” within the valve body, providing superior sealing pressure as it moves against the seat under flow conditions. This design ensures tight shut-off and leak-free performance.It is suitable for both low and high-pressure applications, ensuring reliable shutoff even in demanding environments.
Stainless Steel Construction:Constructed from high-quality 304 or 316 stainless steel, providing excellent resistance to corrosion, rust, and chemical attacks, even in harsh environments.Offers superior strength and durability compared to other materials, ensuring longevity in aggressive and high-pressure environments.
Full-Bore Design:The full-bore ball valve ensures minimal flow restriction and a straight-through path, resulting in low pressure drops and high flow efficiency.Ideal for systems where maintaining maximum flow capacity is crucial.
Working conditions
chemical plant, food factory, General, pharmaceutical factory
Summarize
The stainless steel floating ball valve provides reliable and efficient control of flow in a wide range of industrial applications. Its durable stainless steel construction, combined with the floating ball design, ensures tight shut-off and minimal leakage, even under high-pressure and aggressive fluid conditions. With a wide range of media compatibility, high-flow efficiency, and low-maintenance design, it is an excellent choice for industries such as water treatment, oil and gas, chemical processing, and HVAC. Whether you’re managing water, oil, gas, or light chemicals, the stainless steel floating ball valve offers long-lasting performance and superior sealing in critical systems.
| Nominal diameter |
DN15-DN200 (1/2″ to 8″) |
| Nominal pressure |
PN10-PN63 (150LB-300LB) |
| Body Material |
304/316 Stainless Steel, Carbon Steel |
| Seat Material |
PTFE, RPTFE, Optional High-Temp Seals |
| name |
-20°C to 250°C (-4°F to 482°F) |
| Connection Type |
Flanged |
| Function |
On or Off |
