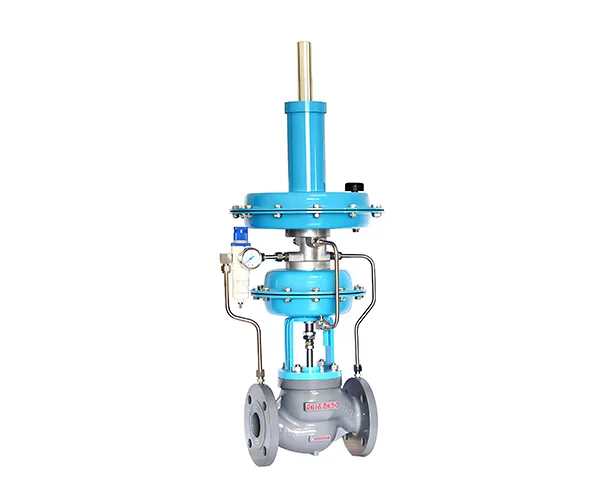

Self-operated micro-pressure regulating valve
The Self-operated Micro-Pressure Regulating Valve is a precision-engineered solution designed for ultra-fine pressure control in low-pressure systems. Utilizing the energy of the process fluid, it automatically adjusts to maintain set pressure levels with exceptional accuracy, making it ideal for applications in laboratory equipment, gas analyzers, and precision instrumentation. Its compact design and self-operating mechanism ensure reliable performance without the need for external power sources.
Category：Self-operated control valve
Call Us Anytime
15669818867
Self-Operated Micro-Pressure Regulating Valve
Key Benefits & Core Features
-
Full ASME/ANSI Compliance for Global Compatibility
Engineered and tested to meet critical ASME B16.34, ASME B16.5, and ANSI/FCI 70-2 standards, this valve features industry-standard flange dimensions and face-to-face lengths for direct drop-in replacement of same-spec American standard valves, with no costly pipeline modifications required.
-
Ultra-Precise Micro-Pressure Regulation
Equipped with a custom large-area diaphragm actuator, it delivers 3-5x higher actuation efficiency than standard self-operated valves. It reliably controls pressures as low as 0.2inH₂O (50Pa) with ≤±3% regulation accuracy, capturing even the slightest pressure fluctuations to deliver stable, oscillation-free performance in ultra-low pressure environments.
-
Self-Powered, Zero-Energy Operation
Fully self-sustaining, the valve runs exclusively on the energy of the process medium, eliminating the need for external power, air supplies, or auxiliary control systems. This cuts installation, operation, and full-lifecycle maintenance costs, while inherently mitigating explosion risks for hazardous area applications.
-
ANSI Class VI Zero-Leak Sealing
High-performance composite soft seal components deliver ANSI/FCI 70-2 Class VI zero-leak performance, eliminating both internal and external media leakage. Ideal for flammable media such as natural gas and biogas, it can be configured with ATEX-compliant options for enhanced safety in hazardous locations.
-
Simplified Installation & Maintenance
Its compact, integrated design enables flexible horizontal or vertical mounting anywhere in the pipeline, with no need for complex supports or secondary instrumentation. The set pressure can be fine-tuned quickly on-site, with no specialized tools or certified technicians required, reducing on-site labor costs for overseas installations.
-
Broad Material & Application Flexibility
Constructed with ASTM-standard materials, with optional ductile iron, WCB carbon steel, 304 (CF8) and 316 (CF8M) stainless steel body options. Seals are available in NBR, Viton, and EPDM to suit air, natural gas, inert gases, low-pressure water, and mildly corrosive chemical media, with customizable pressure ranges to meet project-specific requirements.
How It Works
Typical Applications
Natural gas, LPG, and biogas low-pressure transmission & distribution networks and residential/commercial regulator stations
Static pressure and supply air control for HVAC & mechanical ventilation systems
Positive/negative differential pressure control for pharmaceutical and electronics cleanrooms & controlled environments
Micro-pressure stabilization for chemical off-gas recovery and inert shielding gas systems
Aeration system and anaerobic fermentation tank pressure control for water & wastewater treatment
Furnace draft and flue gas pressure regulation for industrial boilers and waste incinerators
