Three-way ball valve

Product Description

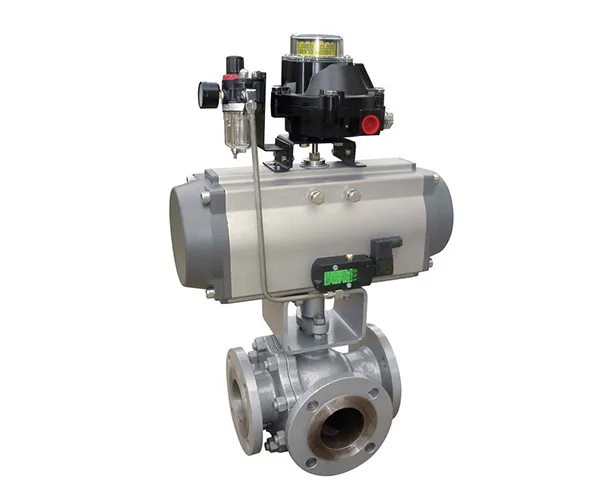

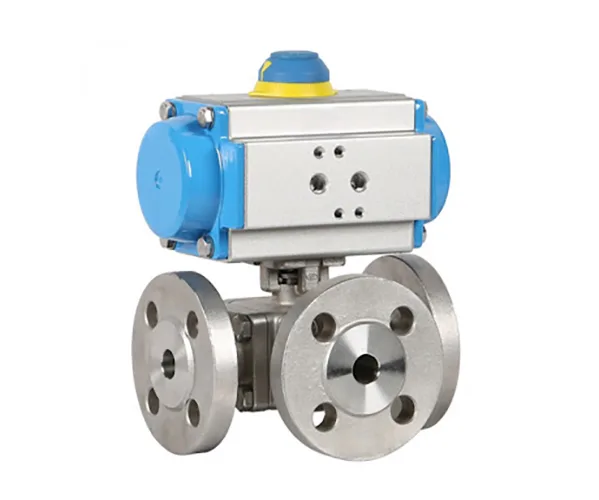

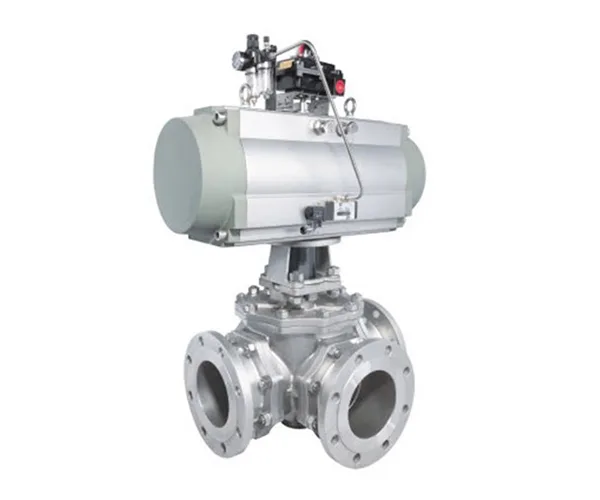

The Pneumatic 3-Way Ball Valve is an advanced flow control solution designed for directing, mixing, or diverting the flow of liquids, gases, and slurries in industrial piping systems. Operated by a pneumatic actuator, this valve provides automated control for applications requiring remote operation, quick response times, and minimal maintenance. With its 3-way configuration, the valve can be utilized for diverting flow from one inlet to two outlets or mixing flow from two inlets into a single outlet, providing significant flexibility in the management of fluid systems.
Made from high-quality stainless steel (304, 316, 316L) or carbon steel, the valve is designed to meet the rigorous demands of industries such as chemical processing, water treatment, oil and gas, HVAC, and power generation. The pneumatic actuator ensures fast and precise operation, enhancing system efficiency, especially when integrated into automated processes. The valve features tight shut-off and minimal leakage, making it highly reliable in high-pressure, high-temperature, and corrosive environments.

Product Features

3-Way Ball Configuration:The valve’s unique 3-way ball design allows for two possible flow configurations: mixing or diverting. In a mixing valve configuration, fluids from two separate lines are combined into one, while in a diverting valve configuration, flow is routed to different paths.This dual functionality makes the valve suitable for a wide range of applications, from blending and controlling to flow switching in complex piping systems.

Pneumatic Actuation:Powered by pneumatic actuators, this valve delivers quick, reliable, and efficient operation with minimal power requirements. Pneumatic systems are typically more durable and reliable than electric actuators, with a reduced risk of failure due to their mechanical simplicity.The valve can be configured with either a double-acting actuator for continuous control or a spring-return actuator for fail-safe operation, ensuring it will return to a default position in case of air supply loss.It can be easily controlled via remote operation and integrated into automated control systems such as PLC, SCADA, or DCS for increased process control.

Durable and Corrosion-Resistant Construction:Constructed from stainless steel (304, 316, 316L) or carbon steel, the valve provides excellent corrosion resistance, ensuring long-term performance in harsh environments. Optional alloy materials are available for specific applications requiring additional resistance to chemicals, high temperatures, or extreme pressure conditions.The ball and seats are precision-machined to ensure zero leakage, offering tight shut-off even in high-pressure applications.

High Flow Capacity:Designed to handle high-flow applications, the valve features a full-port or standard-port design that minimizes pressure drop, ensuring optimal system performance and energy efficiency.The high-flow capacity is crucial for applications where large volumes of fluid need to be managed quickly, reducing operational costs.

Multiple Connection Options:The valve is available with flanged, threaded, or butt-welded connections, providing flexibility for integration into a variety of pipeline systems.
This versatility in connection type ensures compatibility with different installation configurations, streamlining the integration process.

Leakage-Free Performance:PTFE, PFA, or metallic seals provide superior sealing capabilities, ensuring minimal to zero leakage even under high-pressure and high-temperature conditions.The tight shut-off capability is essential in industries such as chemical processing, pharmaceuticals, and food and beverage, where cross-contamination and leaks could compromise safety or product quality.

Explosion-Proof and Weatherproof Options:For use in hazardous or outdoor environments, the valve can be equipped with explosion-proof actuators and weatherproof enclosures, ensuring safe operation in conditions where standard equipment may fail.

Working conditions

chemical plant, General, Petrochemical industry, pharmaceutical factory

Summarize

The Pneumatic 3-Way Ball Valve is a highly versatile and reliable solution designed to manage the flow of liquids, gases, and slurries in industrial applications. With its pneumatic actuator, it offers fast, efficient, and automated operation, ensuring seamless integration into automated systems. Its 3-way configuration allows for both mixing and diverting of flow, making it ideal for a broad range of applications, including chemical processing, oil & gas, water treatment, HVAC systems, and power generation.
