Product Overview:

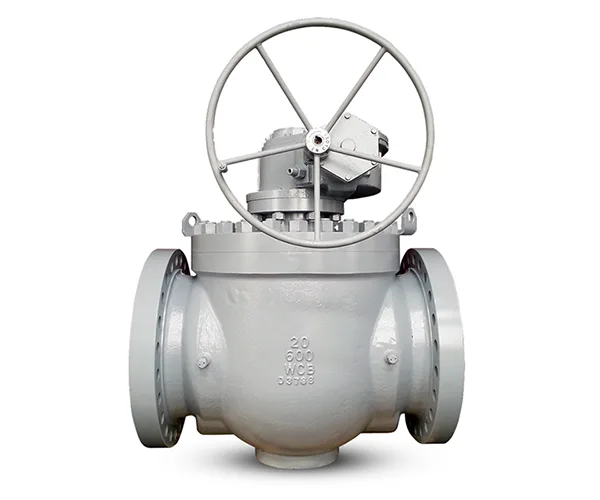

The API Top Entry Ball Valve is an advanced valve designed for high-performance applications in industries that require reliable flow control and easy maintenance. This valve follows the API 6D standard, ensuring compliance with global quality and safety standards for pipeline valves. The top-entry design makes this valve particularly suitable for high-pressure, high-temperature, and corrosive fluid applications, where valve maintenance is required without removing the entire valve from the pipeline.
Key Features:
Top Entry Design:The top-entry design is the standout feature of this ball valve. In this configuration, the valve’s internal components, including the ball, stem, and seat, can be accessed and serviced from the top of the valve body. This design allows for easier maintenance and repair, as the valve does not need to be removed from the pipeline, significantly reducing downtime and labor costs.
API 6D Compliance:This valve meets the rigorous standards of API 6D, which is the international specification for pipeline valves. It is built to provide reliable performance in pipeline systems, ensuring secure, leak-proof sealing even under demanding conditions.
Full Port and Trunnion Mounted Ball:The full-port design ensures that the flow path is unobstructed, allowing for maximum flow and minimal pressure drop. The trunnion-mounted ball offers superior support and precise control over the flow, even at high pressures, enhancing the valve’s reliability and longevity.
Durable Construction:The valve is typically made from high-quality materials such as carbon steel, stainless steel, or alloy steels to provide excellent corrosion resistance, mechanical strength, and resilience in extreme environments. The top-entry ball valve can withstand harsh operating conditions, including high temperatures and pressures.
Leak-Proof Design:The valve’s design incorporates multiple sealing features, including metal-to-metal seals and soft-seated options (PTFE, PEEK), ensuring a reliable, leak-tight seal even under high-pressure conditions.
Modular Construction:The modular construction of the API top-entry ball valve means that individual parts, such as the seat, ball, and stem, can be easily replaced without the need to replace the entire valve. This modularity offers significant cost savings and increases the valve’s lifetime.
Actuation Options:The valve can be operated with various actuation options, including manual, electric, and pneumatic actuators. The electric actuator offers precise control, while pneumatic actuators can provide quick and reliable operation for automated systems.
Advantages of Top Entry Design:
Easier Maintenance and Repair:The primary advantage of the top-entry design is the ease of maintenance. Since the valve body remains in place, the internal components can be replaced or repaired without disassembling the entire valve from the pipeline. This results in reduced downtime, lower maintenance costs, and enhanced system uptime.
Reduced Installation and Removal Costs:With top-entry access, there is no need to disassemble the valve from the pipe during repairs, which eliminates the need for costly and time-consuming installation and removal processes. This reduces overall maintenance costs and improves operational efficiency.
Enhanced Safety and Operational Efficiency:The top-entry ball valve minimizes the need for system shutdowns or pipeline disassembly, thus improving safety and maintaining continuous operation. Its design also allows for easy inspections and servicing in hazardous environments, reducing exposure to dangerous chemicals or high-pressure fluids.
Increased Valve Longevity:The trunnion-mounted ball and full-port design ensure the valve experiences minimal wear and tear, increasing its service life. The top-entry valve design allows for faster repairs, ensuring that the valve operates for longer periods without significant loss in performance.
High Pressure and Temperature Resistance:The top-entry ball valve is ideal for high-pressure and high-temperature applications, making it suitable for industries such as oil & gas, chemical processing, and power generation. The valve can withstand extreme operating conditions, maintaining reliable sealing performance under harsh conditions.
Reduced Leakage Risk:The API 6D standard ensures that the valve meets stringent leak-tight sealing requirements. The top-entry design, with its advanced sealing mechanism, further reduces the risk of leakage, ensuring a safe and reliable operation.
