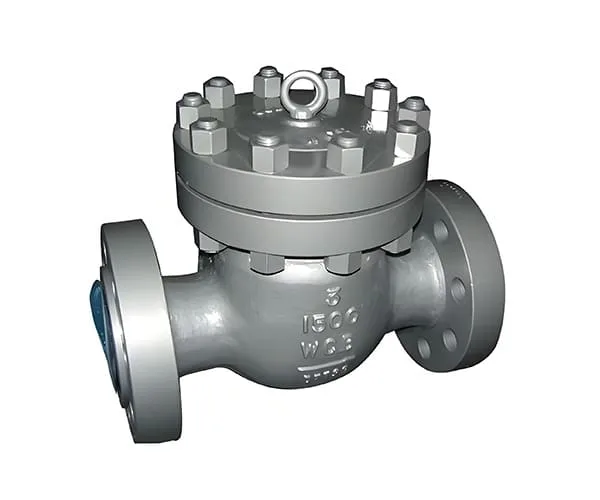

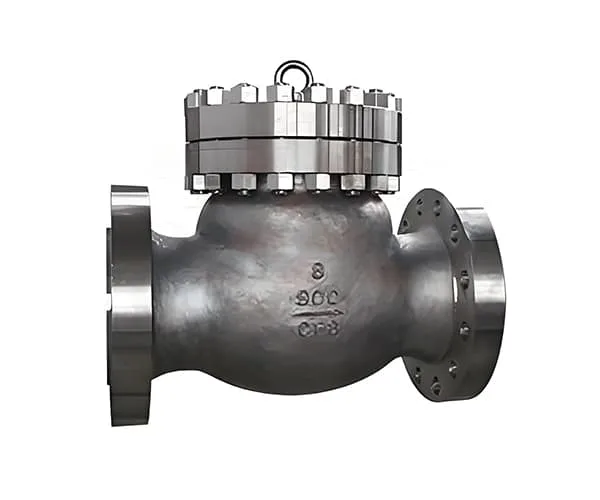

Swing Check Valve

Product Overview

The Steel Swing Check Valve is a standard, non-return valve designed to prevent reverse flow in a wide range of industrial and commercial applications. Featuring a swing disc design, this valve ensures reliable sealing with minimal pressure drop, making it a versatile and cost-effective solution for water, steam, gas, and oil systems.

Constructed from carbon steel or stainless steel, this valve is durable, corrosion-resistant, and suitable for moderate pressure and temperature conditions. Its simple yet robust design allows for easy installation and maintenance, making it a popular choice for general-purpose flow control.

Key Features

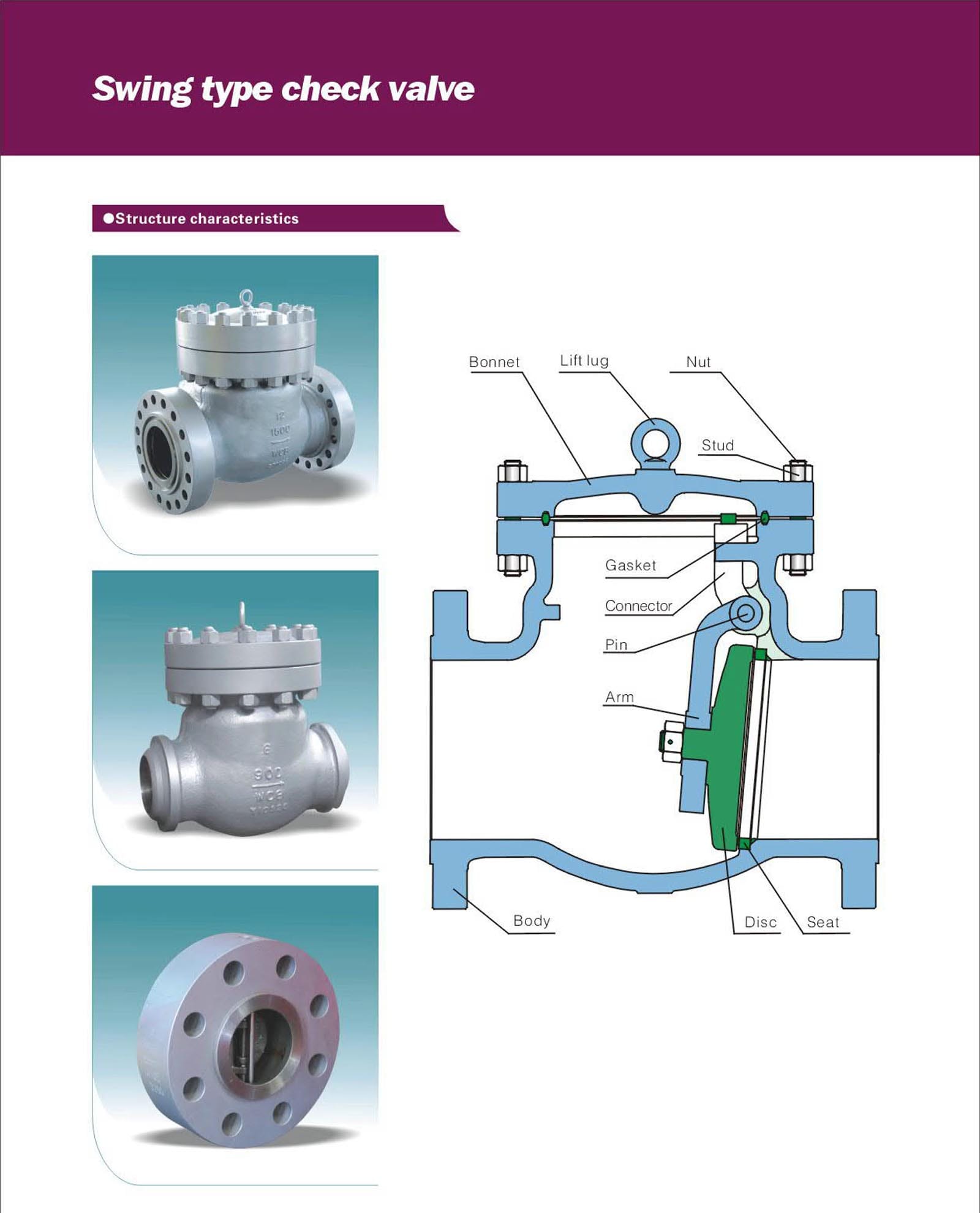

Swing Disc Design:Hinged disc allows smooth, low-resistance flow in the forward direction and immediate sealing upon flow reversal.Reduces water hammer effects compared to other check valve types.

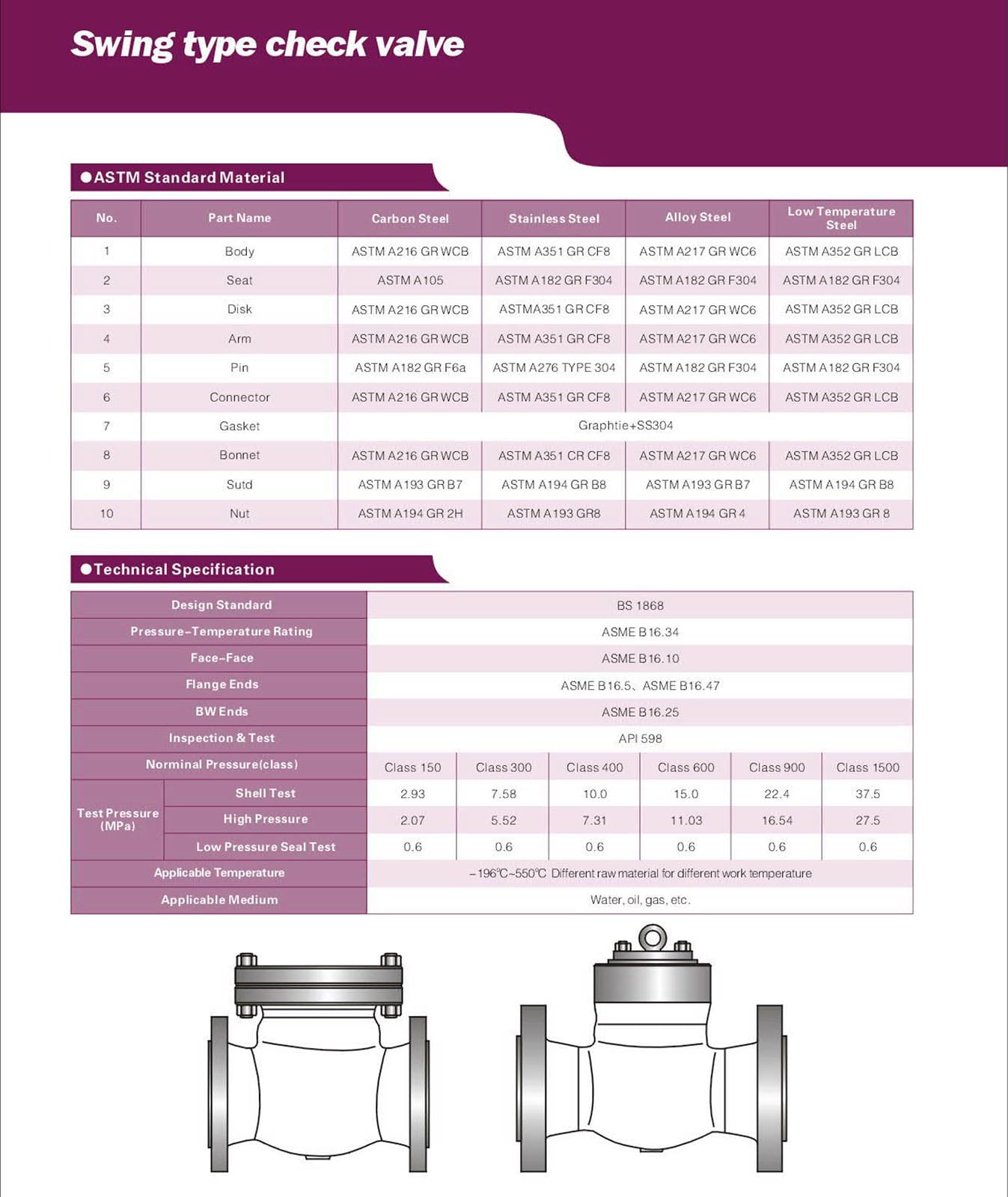

Durable Construction:Body materials: Carbon steel (ASTM A216 WCB) or stainless steel (ASTM A351 CF8M).Internals: Stainless steel trim for corrosion resistance and extended service life.
Low Maintenance:Self-cleaning disc design reduces wear and extends service life.Easy to inspect and repair without removing the valve from the pipeline.
Versatile Installation:Suitable for horizontal or vertical installation (flow upwards).Available in flanged, threaded, or wafer end connections.
Compliance:Meets API 594, ASME B16.34, and ISO 17292 standards for general industrial applications.

Operational Advantages

Reliable Sealing: Swing disc design ensures zero backflow, even at low pressures.
Energy Efficiency: Minimal pressure drop reduces pump energy consumption.
Durability: Steel construction ensures long-term performance in moderate conditions.
Ease of Maintenance: Simple design allows for quick inspection and repair.

Operational Advantages

Reliable Sealing: Swing disc design ensures zero backflow, even at low pressures.
Energy Efficiency: Minimal pressure drop reduces pump energy consumption.
Durability: Steel construction ensures long-term performance in moderate conditions.
Ease of Maintenance: Simple design allows for quick inspection and repair.

Working conditions

cement factory, chemical plant, metallurgical plant, Petrochemical industry, power plant

Summarize

The Steel Swing Check Valve is a reliable, cost-effective solution for preventing reverse flow in water, steam, oil, and gas systems. Its swing disc design, durable steel construction, and compliance with industry standards make it an ideal choice for general-purpose applications. Whether you are managing a municipal water supply, designing an industrial process system, or supplying commercial equipment, this valve delivers consistent performance with minimal maintenance.
