Wafer Check Valve

Product Overview

The Stainless Steel Wafer Check Valve is a corrosion-resistant, non-return valve designed to prevent reverse flow in demanding environments such as chemical processing, marine applications, and high-purity systems. Featuring a wafer-style design, this valve is installed between flanges, offering a compact, lightweight solution with minimal pressure drop.

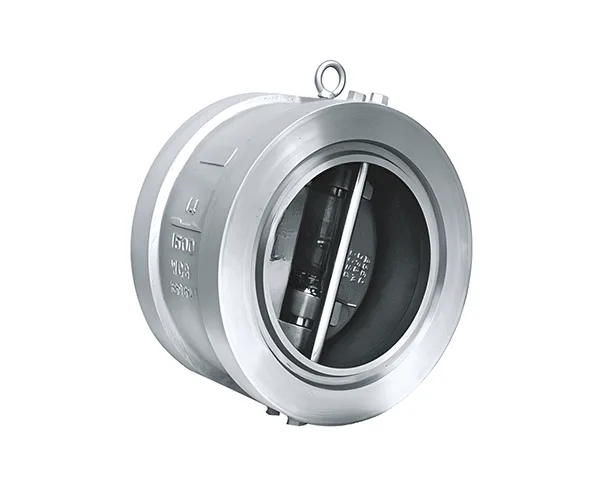

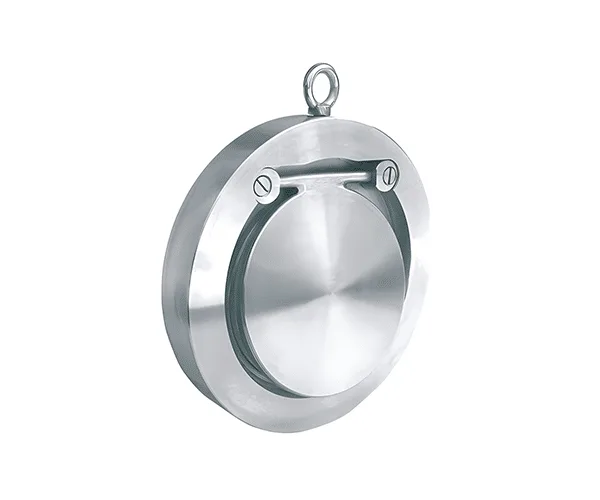

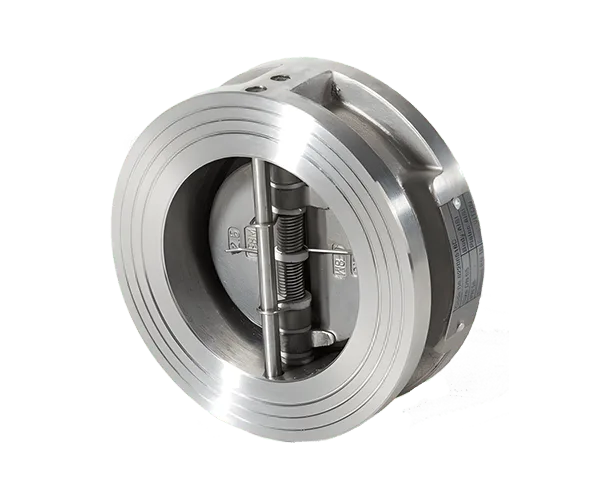

Constructed entirely from stainless steel (ASTM A351 CF8M/CF3M), this valve excels in handling corrosive media, high temperatures, and high-pressure conditions. Its swing disc or dual disc design ensures rapid sealing upon flow reversal, making it ideal for applications requiring reliability and durability.

Key Features

Full Stainless Steel Construction:Body, disc, and fasteners made of CF8M (316 stainless steel) or CF3M (316L stainless steel).Resists pitting, crevice corrosion, and oxidation in aggressive media (e.g., chlorides, acids).
Wafer Design:Compact and lightweight, ideal for space-constrained installations.Installed between ANSI/DIN/JIS flanges without additional bolts or gaskets.
Low Resistance & Rapid Closure:Optimized flow path minimizes pressure drop.Swing disc or spring-assisted dual disc ensures immediate sealing to prevent water hammer.
High-Temperature Capability:Operates reliably in temperatures up to 400°F (204°C), with optional materials for higher temperatures.
Compliance:Meets API 594, ASME B16.34, ISO 17292, and NACE MR0175 standards.

Operational Advantages

Corrosion Resistance: Ideal for harsh environments, including marine and chemical exposure.
Hygienic Design: Electropolished surfaces (Ra ≤ 0.8 μm) meet FDA and EHEDG standards for sanitary applications.
Low Maintenance: Self-cleaning design reduces fouling and extends service life.
Versatility: Suitable for both high-purity and industrial corrosive media.
