Product Overview:

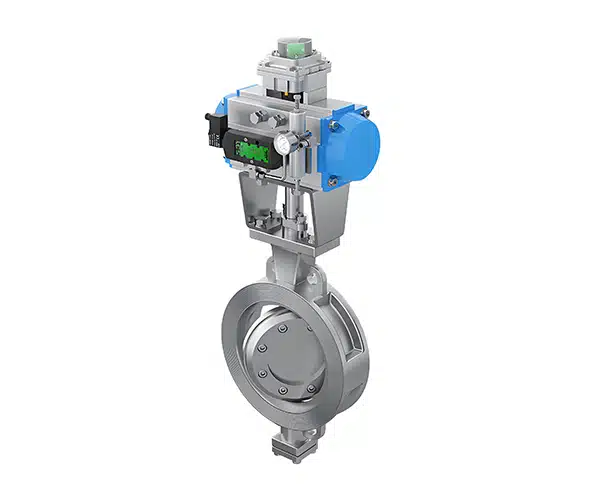

The Pneumatic Wafer Butterfly Valve is a high-performance flow control solution designed for compact and efficient operation. Its wafer-style design enables easy installation between flanges, making it an economical and space-saving option for various pipeline systems. Equipped with a pneumatic actuator, this valve ensures reliable and rapid automation, suitable for applications requiring frequent on/off or modulating control.
With excellent sealing performance and durable materials, the pneumatic wafer butterfly valve is suitable for handling a wide range of media, including liquids, gases, and slurries. Its versatility and efficiency make it a preferred choice across numerous industries.
Key Features:
Wafer-Style Connection:Fits seamlessly between flanges, reducing the need for additional hardware.Suitable for both unidirectional and bidirectional flow.
Compatible with multiple flange standards, such as ANSI, DIN, and JIS.

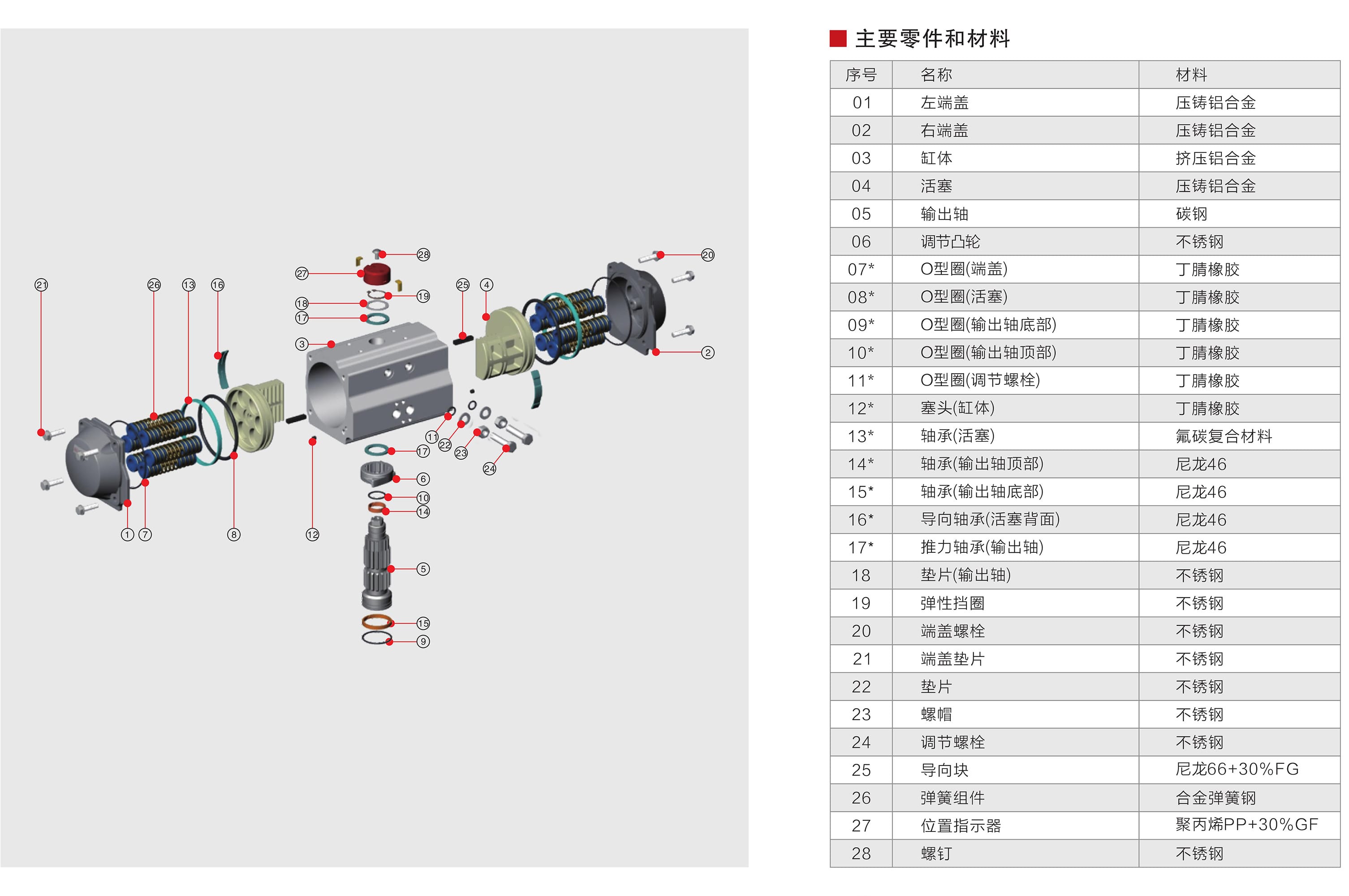

Pneumatic Actuation:Double-acting and spring-return actuators available for precise flow control.Supports both on/off and modulating control, adaptable to different system requirements.Rapid response time ensures efficiency and minimal downtime.
Sealing Options:Soft seals (e.g., EPDM, PTFE) for standard applications requiring tight shutoff.Metal seals for high-temperature or abrasive conditions, ensuring durability and leakage control.

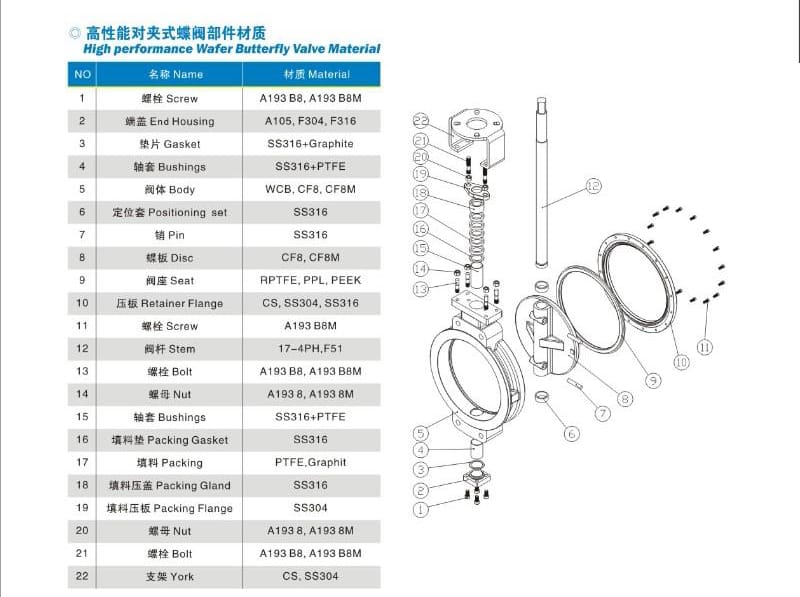

Material Diversity:Body materials include cast iron, ductile iron, carbon steel, and stainless steel for corrosion resistance and compatibility with various media.Disc materials such as stainless steel and nickel-plated steel enhance resistance to wear and corrosion.
Compact Design:Lightweight and compact structure simplifies installation and reduces space requirements.
Compliance with Standards:Manufactured to meet international standards, such as API 609, ISO 5211, and CE, ensuring reliability and safety.
Advantages
Cost-Effective Installation:The wafer design minimizes material usage, reducing overall installation costs.
Easy alignment between flanges simplifies setup, saving time and labor.
Enhanced Versatility:Suitable for a broad range of applications, from water distribution to chemical processing.
Available in multiple sizes and pressure ratings, accommodating diverse system requirements.
Efficient Automation:Pneumatic actuation provides fast and reliable operation, ideal for high-frequency use in automated systems.
Reduced energy consumption compared to electric actuators.
Durability and Longevity:High-quality materials and advanced sealing options ensure a long service life, even in demanding conditions.
Low Maintenance:Self-cleaning sealing surfaces minimize the risk of fouling and reduce maintenance requirements.
Working conditions
Building Construction, cement factory, chemical plant, food factory, General, paper mill, pharmaceutical factory
Summarize
The Pneumatic Wafer Butterfly Valve is a versatile and economical choice for automated flow control in industrial pipelines. Its compact wafer design, efficient pneumatic actuation, and diverse material options make it suitable for a wide range of applications. With robust sealing performance and compliance with international standards, this valve ensures reliable operation, low maintenance, and long-term efficiency.Whether managing water treatment systems, handling chemicals, or regulating HVAC systems, the Pneumatic Wafer Butterfly Valve delivers unmatched performance and reliability.
