Three-way ball valve

Product Description

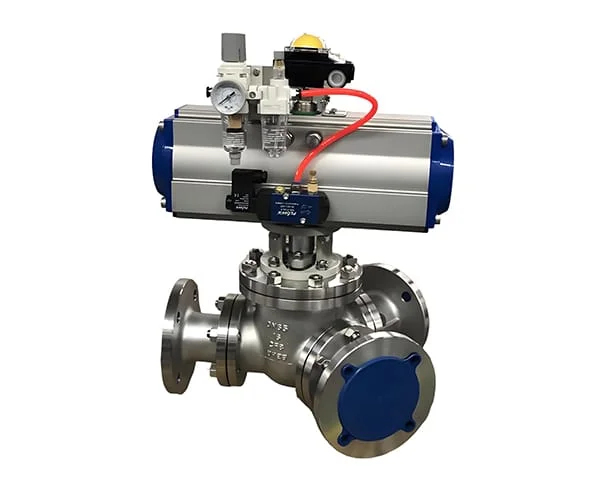

The Pneumatic 135-Degree Y-Type Three-Way Ball Valve is a highly versatile and reliable valve used for directing, dividing, or mixing flow in complex piping systems. This valve is engineered with a unique Y-type design, featuring a 135-degree rotation, which allows for precise flow control and efficient media distribution. The valve is actuated pneumatically, enabling remote operation and automation in industrial systems. It is particularly suitable for use in industries that require seamless flow control, such as oil and gas, chemical processing, water treatment, and HVAC. With its robust construction, the Pneumatic 135-Degree Y-Type Three-Way Ball Valve provides high performance in demanding applications, offering tight shutoff capabilities, long service life, and ease of maintenance. The valve’s Y-shape design ensures smooth flow transitions with minimal turbulence, reducing the risk of pressure drops and enhancing system efficiency.

Product Features

135-Degree Rotation:The valve features a 135-degree rotation to achieve precise switching between flow paths, directing media between three ports in a seamless manner. This design is ideal for applications that require mixing or diverting flow with high accuracy.

Pneumatic Actuation:The pneumatic actuator offers reliable and fast operation with a spring-return or double-acting configuration, depending on the application requirements. Pneumatic actuation is ideal for systems where automation and remote control are needed.The actuator is designed for low energy consumption, making it both cost-effective and efficient in automated systems.Available with explosion-proof or weatherproof options for use in hazardous environments.

Y-Type Design:The Y-type design improves flow characteristics by ensuring a smooth, non-turbulent transition between inlet and outlet ports. This minimizes energy loss and enhances the overall flow efficiency.The Y-shape also helps in reducing cavitation and noise, especially when handling high-pressure or high-flow applications.

High-Quality Materials:Constructed with corrosion-resistant materials such as stainless steel (304, 316, 316L), carbon steel, or alloy materials to withstand harsh media and environmental conditions.The ball and seats are precision-machined for optimal sealing and longevity, ensuring zero leakage even under high pressure.

Leak-Free Performance:Designed to ensure zero leakage at all operating conditions, the valve utilizes durable sealing materials such as PTFE, PFA, or metallic seals to provide long-lasting, tight shut-off performance.Suitable for systems where tight control of fluids and gases is essential, such as in chemical processes or critical fluid transportation systems.

Versatile Connection Options:Available in various connection types, including flanged, threaded, and welded connections, allowing for flexible integration into different pipeline systems.

Durable and Reliable:The valve’s robust design and high-quality materials ensure reliable performance in both high-pressure and high-temperature applications, making it suitable for a broad range of industries and operating conditions.

Working conditions

chemical plant, General, Petrochemical industry
