Product Overview:

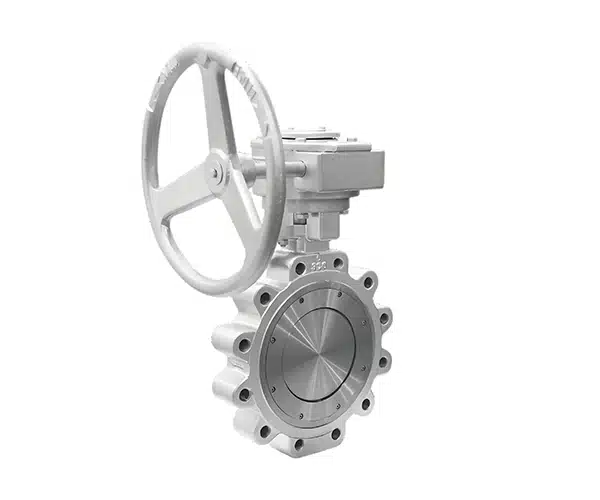

The Full Lug Type Butterfly Valve is a robust and versatile flow control device widely used in pipelines for its reliable sealing performance and ease of maintenance. This type of valve features a lug-style body design, allowing it to be installed between flanges with bolts that connect only one side of the valve, making it suitable for end-of-line service.
Designed to meet demanding industrial requirements, the full lug butterfly valve is ideal for isolating or regulating flow in a variety of applications, including water treatment, chemical processing, oil and gas, and power generation. It is available in a range of materials to suit different media and working conditions, ensuring durability and operational efficiency.
Key Features:
Lug-Style Body Design:The lug-type structure allows independent bolting on either side of the valve, facilitating maintenance and enabling dead-end service without affecting downstream piping.Provides secure and reliable alignment during installation.
Wide Material Compatibility:Body materials include cast iron, ductile iron, stainless steel, and carbon steel, catering to diverse industrial needs.
Seat materials such as EPDM, NBR, PTFE, or metal seals ensure compatibility with various media and temperature ranges.
Compact and Lightweight:Space-saving design makes it ideal for installations where space is limited.Easy to handle and install, reducing labor and operational costs.
Flexible Actuation Options:Compatible with manual, pneumatic, electric, or hydraulic actuators, supporting on/off and modulating control.
Actuation options enhance automation capabilities in complex systems.
Reliable Sealing Performance:Features a concentric or eccentric disc and seat design, ensuring tight shutoff (zero leakage) in both directions.
Meets international standards such as API 609, EN 593, and ISO 5211.
Maintenance-Friendly Design:Accessible construction allows easy inspection, repair, or replacement of internal components without removing the valve from the pipeline.
Advantages
Enhanced Durability:Built to withstand harsh environments and resist wear, corrosion, and high pressures.
Cost-Effective Solution:Simple design with fewer components reduces initial costs and minimizes maintenance expenses.
Versatility in Applications:Suitable for a wide range of industries, handling liquids, gases, and semi-solids efficiently.
Isolation Capability:Lug-type valves can serve as isolation devices, allowing one side of the pipeline to be disconnected without draining the entire system.
Customizable Configurations:Available in various sizes, pressure ratings, and materials to meet specific operational requirements.
Working conditions
Building Construction, cement factory, chemical plant, food factory, metallurgical plant, Petrochemical industry, pharmaceutical factory, power plant
Summarize
The Full Lug Type Butterfly Valve is a highly reliable and versatile solution for industrial flow control applications. Its robust construction, secure installation, and adaptability to various media and working conditions make it an excellent choice for industries seeking long-term, cost-effective performance.Whether used for isolating flow in water treatment plants, controlling chemicals in process systems, or managing pipelines in the oil and gas sector, this valve ensures efficient and reliable operation, meeting the demands of modern industrial systems.
