Product Overview

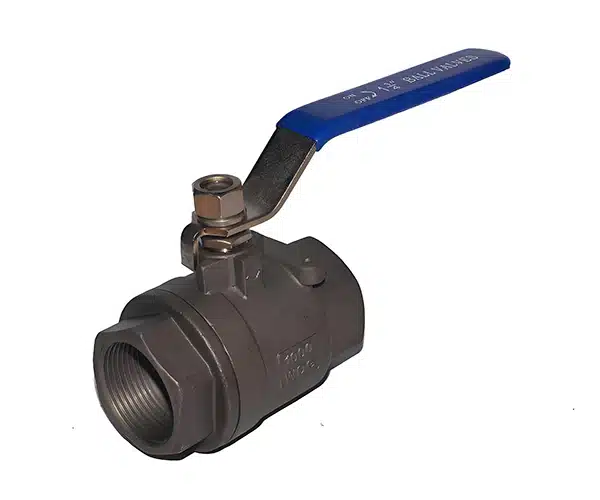

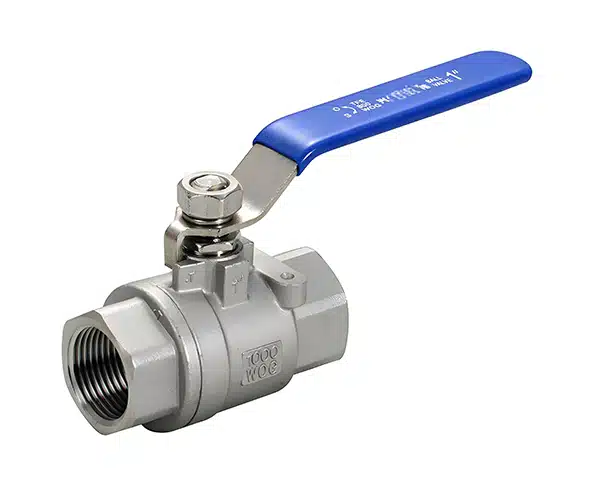

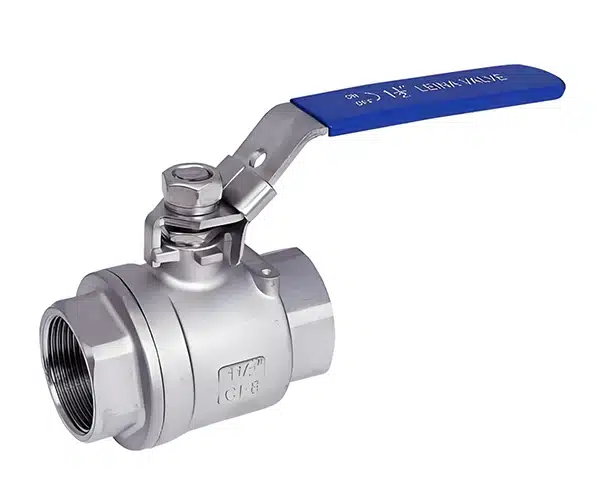

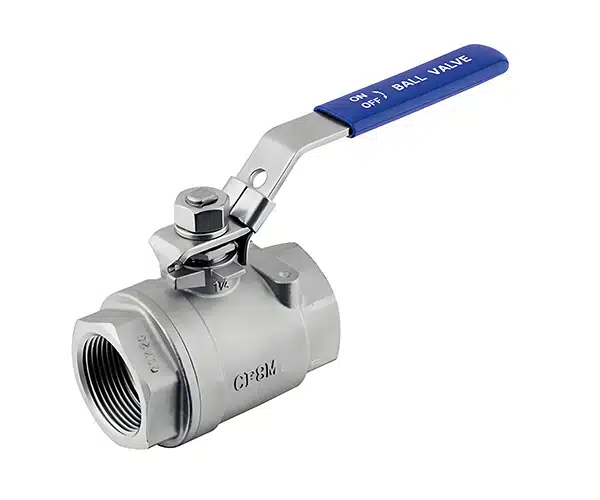

The 2-Piece Threaded Ball Valve is a robust and versatile fluid control device designed for applications requiring reliable shut-off and flow control in threaded pipe connections. This valve’s compact design and two-piece construction offer ease of installation and maintenance, making it ideal for various industrial and commercial settings. The ball valve mechanism ensures minimal pressure drop and efficient media passage, providing long-lasting performance under diverse operating conditions.
Key Features and Advantages
Compact Design: Two-piece construction minimizes overall footprint, simplifying installation within tight spaces.
Durable Construction: Manufactured from high-quality materials such as brass, stainless steel, or ductile iron, ensuring longevity and corrosion resistance.
Threaded Connections: Equipped with NPT (National Pipe Thread) or BSP (British Standard Pipe) threads for easy installation and compatibility with existing piping systems.
Superior Flow Characteristics: Full-bore design allows for smooth, unrestricted media passage, reducing pressure loss and improving system efficiency.
High Sealing Performance: Precision-engineered seats and seals provide reliable shut-off capabilities, preventing leaks even under high-pressure conditions.
Quick Switching Capability: Operated by a quarter-turn mechanism, allowing for rapid opening and closing to enhance operational safety and responsiveness.
Versatile Actuation Options: Available with manual handles or automated actuators (pneumatic, electric) to suit different control requirements.
Easy Maintenance: Modular construction facilitates straightforward disassembly and service, minimizing downtime.
Suitable Media
The 2-Piece Threaded Ball Valve is compatible with a wide range of media, including:
Liquids: Water, oils, chemical solvents, acids, alkalis, and slurries
Gases: Air, natural gas, nitrogen, oxygen, and inert gases
Steam: Saturated steam (up to specified temperature limits)
Mixed Fluids: Solutions containing solid particles, emulsions, and suspensions
Operating Conditions
This valve excels in various industrial settings, particularly those characterized by:
Water Supply Systems: Controlling water flow in residential, commercial, and industrial settings.
Heating Systems: Managing hot water or steam in HVAC systems for efficient heating and cooling.
Irrigation Systems: Regulating water distribution in agricultural and landscaping applications.
Chemical Processing: Handling corrosive chemicals and solvents in continuous processes.
Food & Beverage Industry: Ensuring hygienic transfer of beverages, juices, and food products.
Pharmaceutical Manufacturing: Maintaining purity and sterility in the conveyance of pharmaceutical liquids and gases.
Oil & Gas Industry: Managing hydrocarbons and associated fluids in extraction, refining, and transportation.
In summary, the 2-Piece Threaded Ball Valve represents a reliable solution for precise flow control, combining durability, precision, and adaptability. Its ability to operate effectively across a broad spectrum of applications makes it an indispensable component in any facility seeking to optimize its fluid management systems. For detailed inquiries or custom solutions, please do not hesitate to contact our technical support team for further assistance.
| Nominal Diameter |
DN15-DN50 (½” to 2”) |
| Nominal pressure |
PN16 (1.6 MPa) – PN40 (4.0 MPa);150LB-300LB, depending on the application and material selection |
| Operating Temperature Range |
-20°C to +120°C (specific models can support higher temperatures) |
| Connection Types |
Threaded (NPT, BSP) |
| Body Material: |
Stainless steel, carbon steel. Choose according to application requirements |
| Seal Material |
PTFE，PPL，STL，elastomers based on temperature and medium compatibility |
| Ball Material |
stainless steel |
| Actuator Types |
Manual lever |
